MOZA R5 Pro Bundle Racing Simulator (Direct Drive)

MOZA R5 Pro Bundle (Direct Drive) Racing Simulator Set

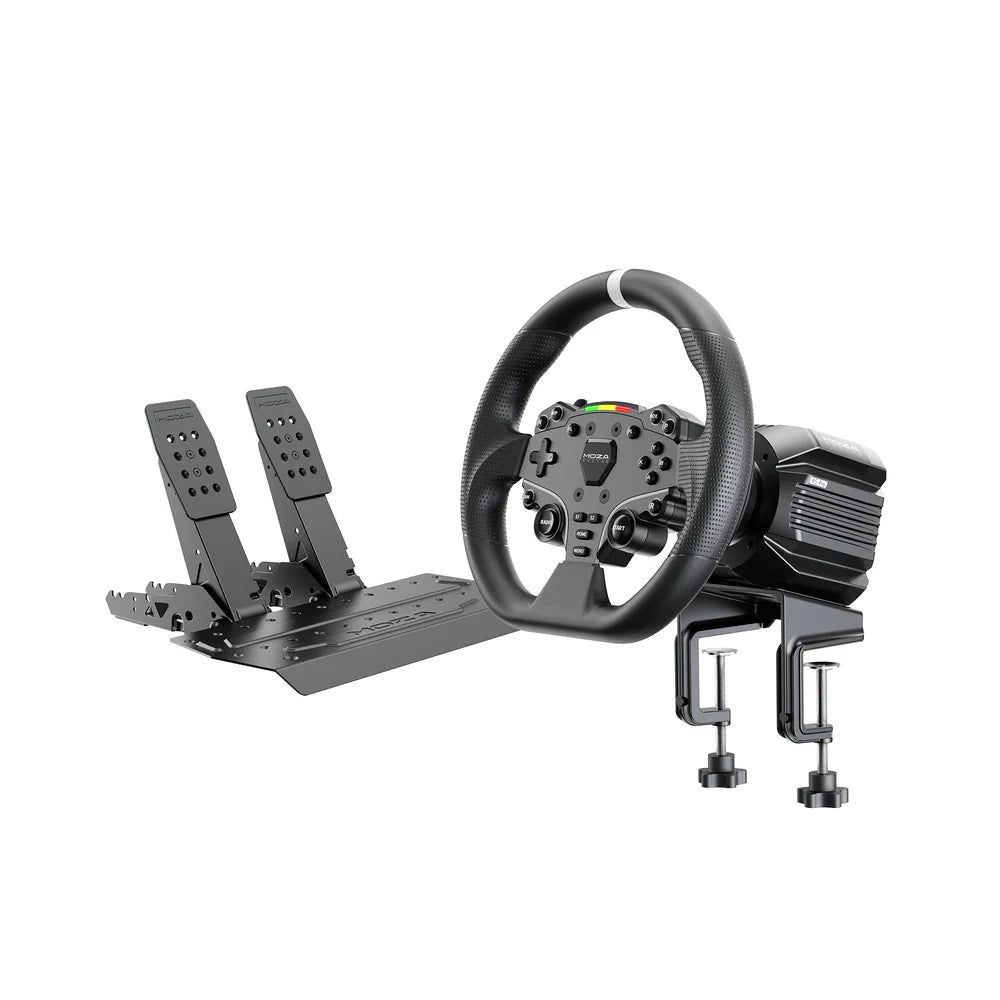

Elevate your sim-racing experience to new heights with the MOZA R5 Pro Bundle. Featuring a powerful 6 Nm Direct Drive motor, ultra-precise 21-bit magnetic sensors, and the NexGen FFB 5.0 algorithm, this bundle delivers authentic, smooth, and precise force feedback directly on your desk or dedicated racing rig.

Key Features

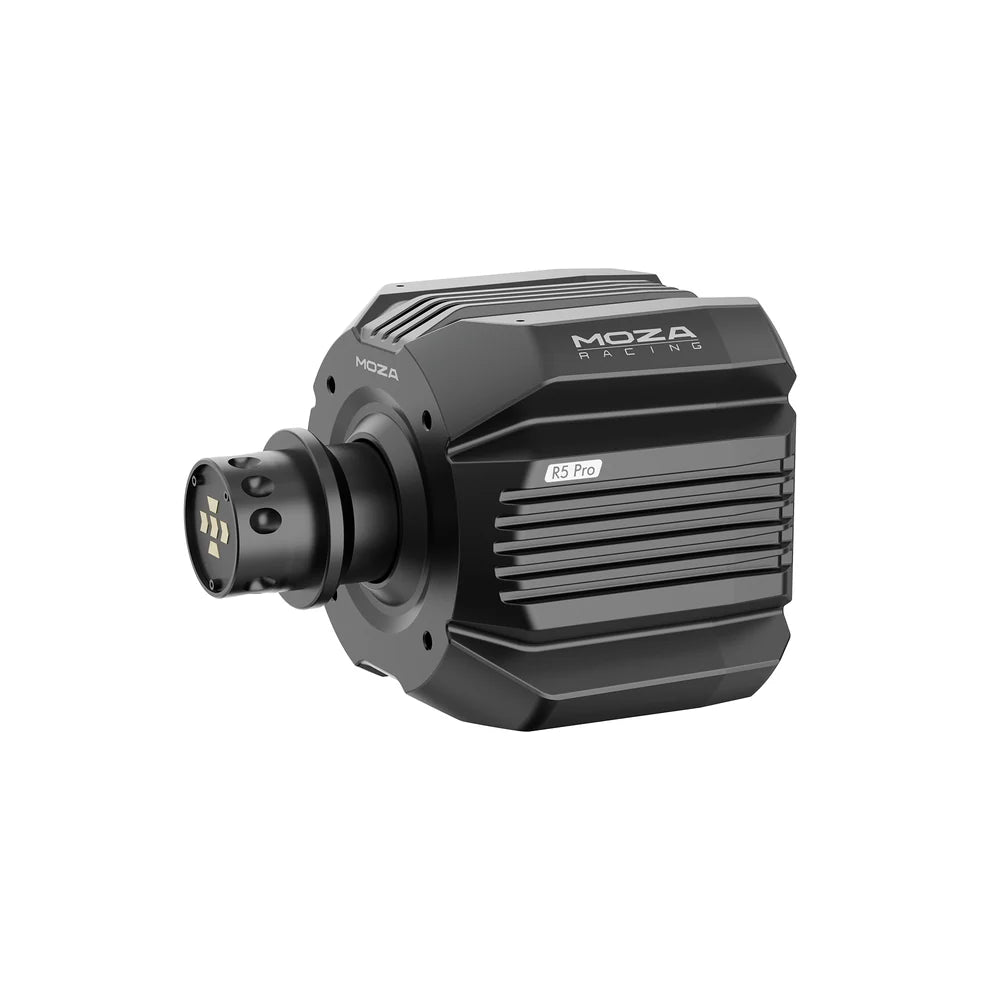

• 6 Nm Direct Drive Motor: 9.1% increased force feedback compared to the standard R5 generation, conveying every detail of the road, tire grip, and instant force feedback.

• 21-bit Magnetic Sensor: Over 2 million points of resolution (64 times more than the previous generation), providing smooth and incredibly detailed steering.

• NexGen FFB 5.0 Algorithm & 600 MHz CPU: High-speed force feedback signal processing, reducing latency and recreating dynamic force feedback.

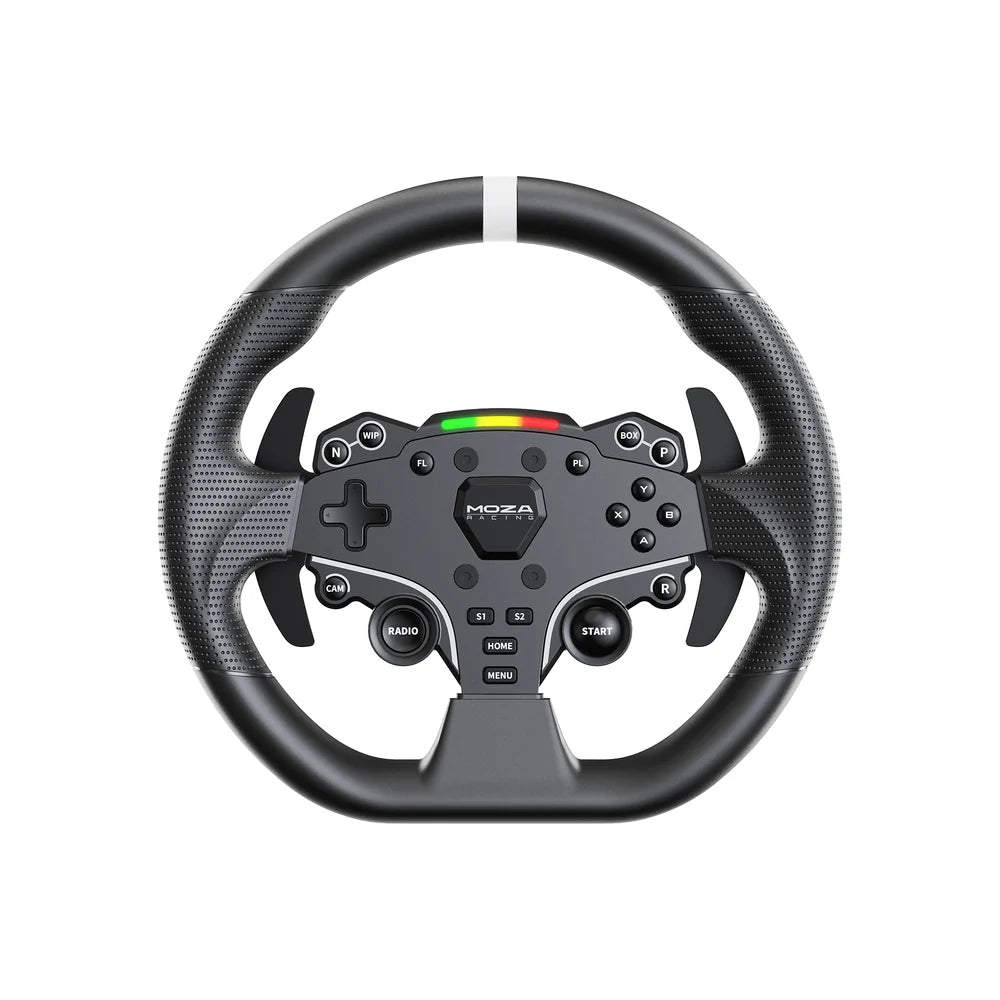

• MOZA ES Lite Steering Wheel (280mm): Aluminum alloy frame wrapped in comfortable TPE, integrated with 22 programmable buttons and a 10-segment RGB LED RPM indicator light strip.

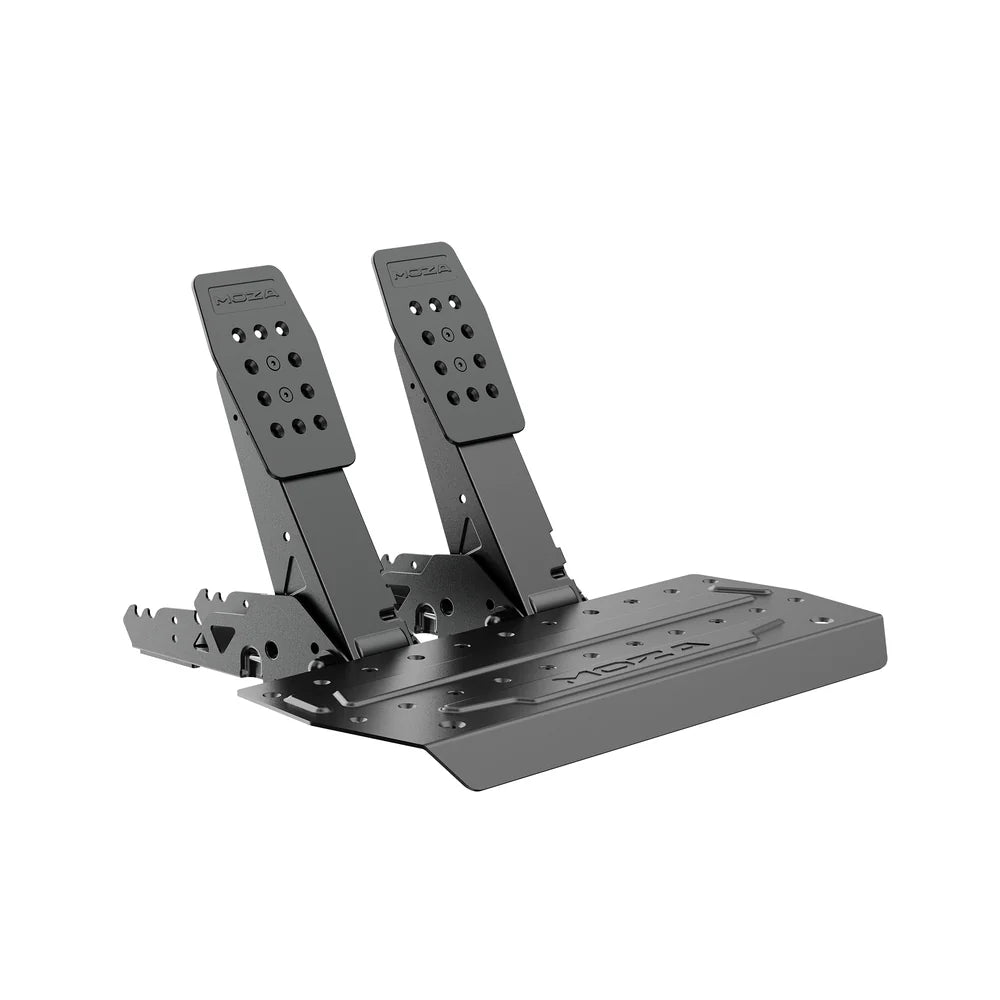

• SRP Lite2 Pedal Set (Throttle & Brake): Robust high-strength steel construction, using non-contact Hall sensors to resist wear, with easy adjustment for pedal height and spacing.

• Flexible Mounting: Comes with a quick-release Table Clamp, supporting both bottom and front screw mounts for a cockpit.

• Easy Customization: Synchronize and fine-tune all parameters via the MOZA Pit House software on PC or the MOZA Racing App on your phone.

Technical Specifications

• Drive Type: Direct Drive

• Maximum Torque: 6 Nm

• Encoder Resolution: 21-bit

• USB Refresh Rate: 1000 Hz

• Construction Material: Aviation-grade Aluminum Alloy & High-Strength Steel

• Steering Wheel Size: 280 mm

• Pedal Sensor: Non-contact Hall Sensor

• Supported Operating System: Windows PC

• Game Compatibility: iRacing, Assetto Corsa, ACC, F1 series, Forza Motorsport, EA SPORTS WRC...

Package Includes

• 1x MOZA R5 Pro Wheelbase

• 1x MOZA ES Lite Steering Wheel

• 1x MOZA SRP Lite2 Pedal Set (Throttle & Brake Pedals)

• 1x Table Clamp

• 1x Power Supply & Power Cord

• 1x USB Connection Cable

• 1x Installation Tools & User Manual
